Description

SPECIFICATIONS

Application: Construction,advertising,building material

Brand Name: NoEnName_Null,grandview

Certification: CE

Color: clear

Condition: New

Density: 1.2g/cm3

Hign-concerned Chemical: None

Inventory: Large stock acrylic tube

Model Number: 002

Origin: Mainland China

Place of Origin: Guangdong, China

Product name: transparent acrylic plexiglass tube

Resistance: Excellent resistance to weather

Shape: Round

Surface: High gloss acrylic tube

Type: Pool

light transparency: 93%-95%

material: PMMA

PLEASE NOTE:
1.The price only for reference, the specific cost based on your requirements and
the destination port, please contact us for more product details and quotations
2.We ship you by sea !!!
3.Door to door please leave message for price !!!
4.For specific information, please consult us. Wishing you a happy life!
5.Whatsapp:+86 182 0366 6368
Emali:chunhuali681@gmail.com
CONTACT US:
Please click here to contact me directly

Products and Applications

Why Choose Us

One Time Cast 300mm Thick

Maximum 300mm one time and laminated to 800mm thickness.

30 Years Guarantee

Test tensile strength and vicat softening temperature for each production batch.

Top Edge Chamfered

With good chamfer on top edge,protect the body,bonding no bubbles.

Strong Production Capacity

7-10days short production time,huge stock ,large capacity.

1.Offer on site installation service and technical support

2.We serve customer with customized acrylic and turnkey project. In a word just tell us your dimension or suggestion; We will try.Our best to satisfy you. You can rest assured that both our quality and service are the best.

How to order

1.TELL US THE SIZE

Tell us your swimming pool length,width and height,water level.It is better have design file.

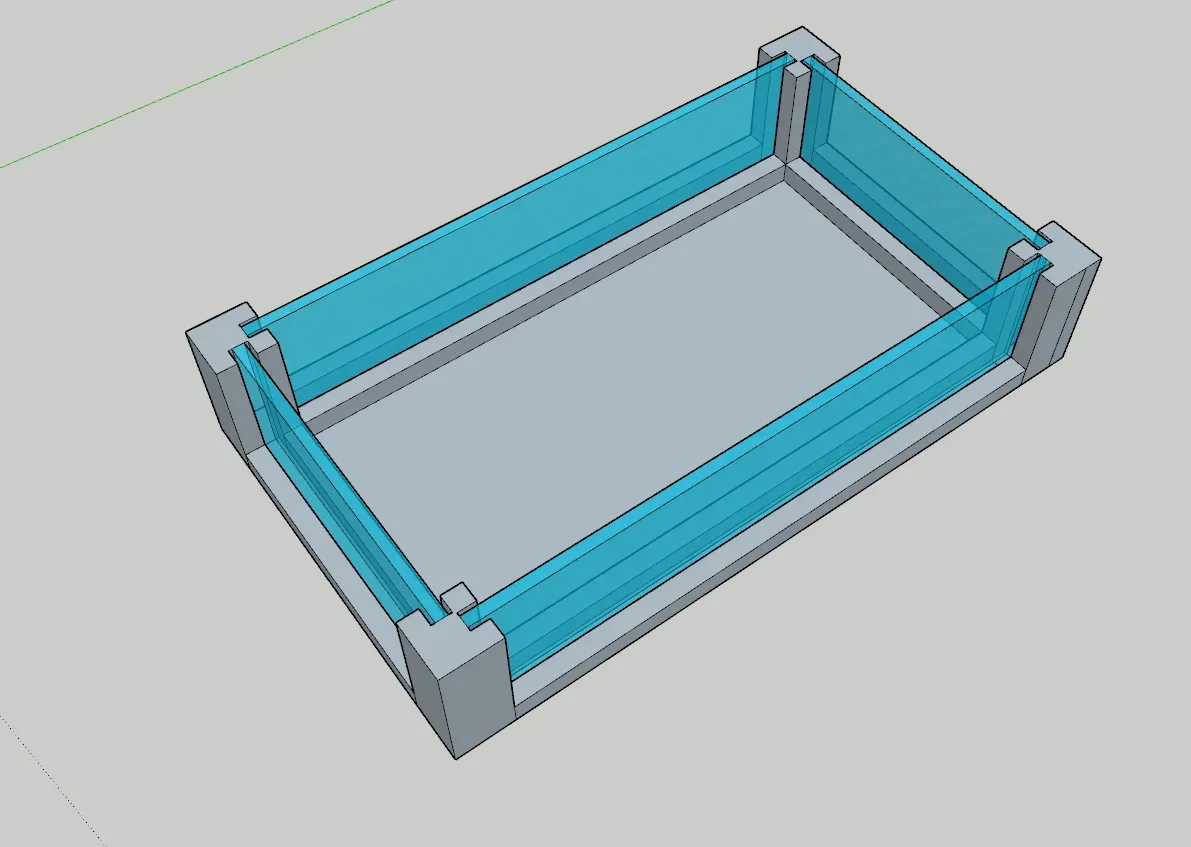

2.DRAFT DESIGN

By finite element analysis,we sure the thickness of acrylic,we draw design for you.

3.PRODUCTION

We start production,cutting,bonding,bending,polishing,QC and packing,shipping to you

4.INSTALLATION

We provide you installation guide,our engineer can go to your side to do installation if necessary

Products Description

Material	Lucite Acrylic
Thickness	20-300mm customized
Color	Clear/transparent
Shape	Customer’s Demand
Surface	High Surface Hardness
Light transmission	High light transmission(95%)
Diaphaneity	More than 93%
Packing	PE film masking on both sides,KT board and angle iron.

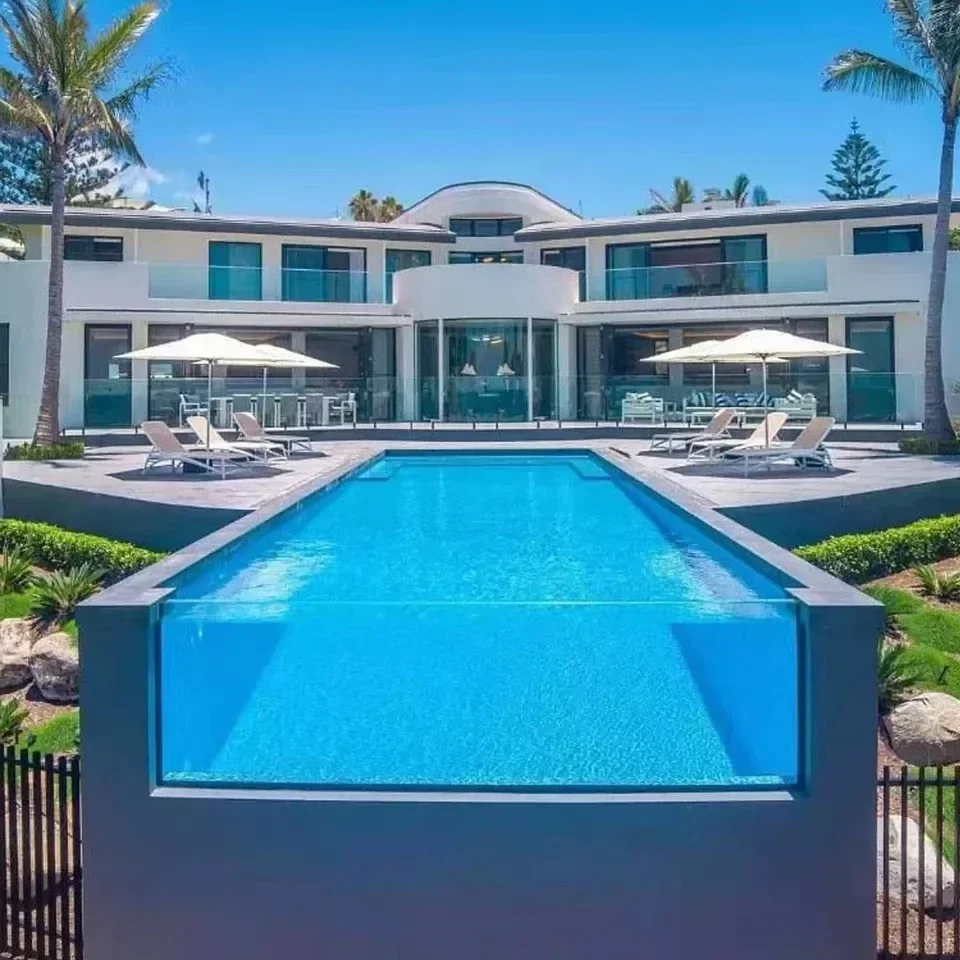

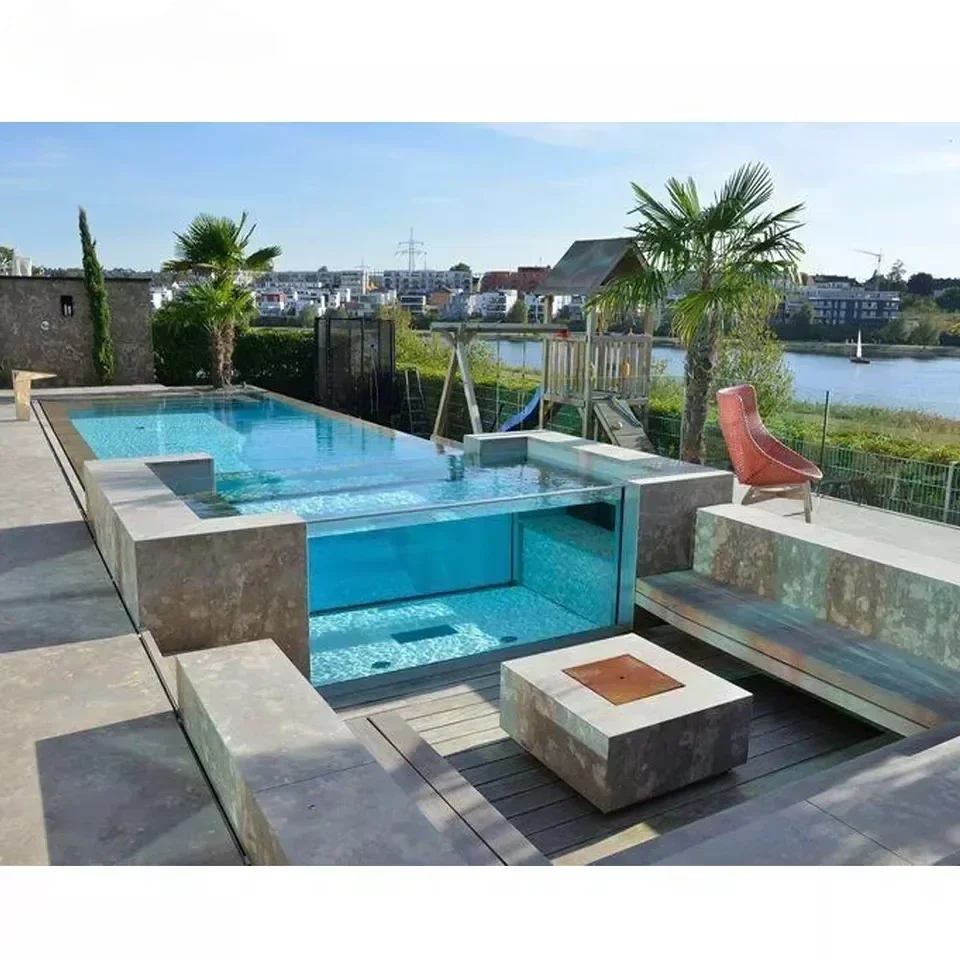

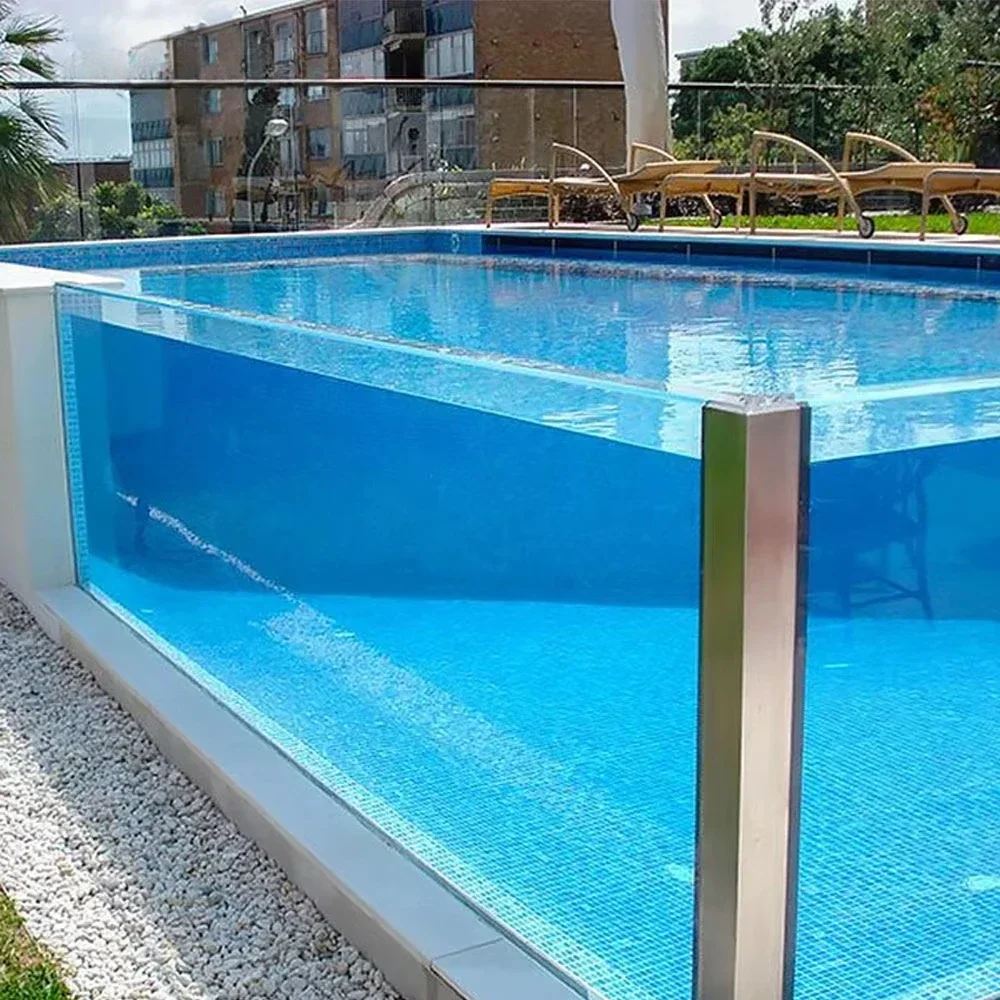

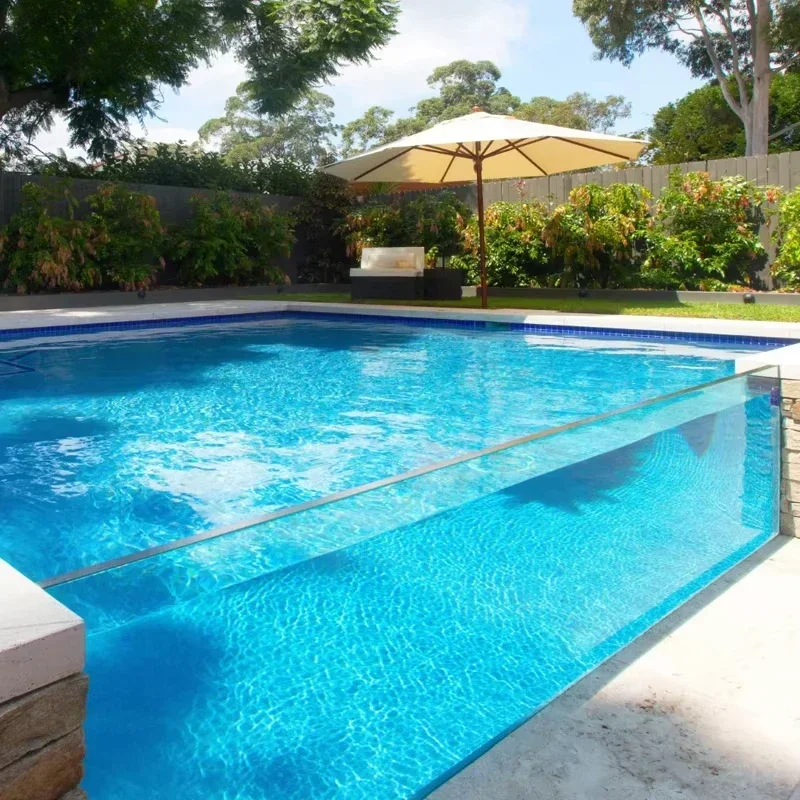

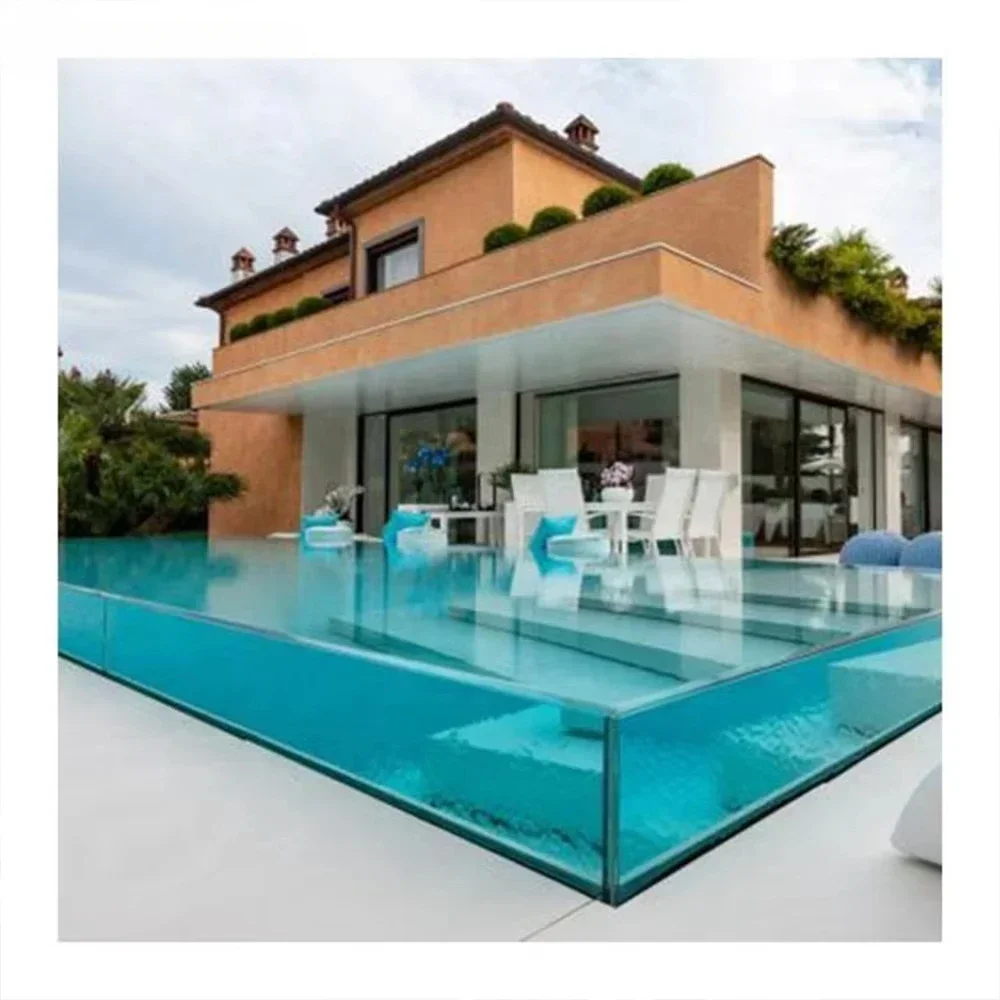

Application	undersea world, Oceanarium, Zoo, Luxurious hotels, Swimming pools and so on.

Data sheet

PROPERTIES	VALUES	RULES
Density	1.19 g/cm3	ISO 1183-1:2012 Method A
Rockwell Hardness	112L	ISO 2039-2:1999
Tensile Modulus	3150MPa	EN ISO 527:2012
Tensile Strength	80.0MPa	EN ISO 527:2012
Tensile Strain at Break	3.2%	EN ISO 527-1:2012
Water Absorption	0.20%	ISO 62:2008 Method 1
Total Luminous Transmittance	93.4%	ISO 13468-1:1996
Vicat Softening Temperature	105℃	ISO 306:2013 Method B50
Light Ageing Test- UV Exposure	Grey scale: 5	ISO 4892-3:2016 Cycle 1
Mean Coefficient of Linear Thermal Expansion	72×10-6 K-1	ISO 11359-1:2014
Compressive Stress at Yield	129MPa	EN ISO 604:2003
Flexural Strength	120MPa	ISO 178:2013
Compressive Yield Strength	111MPa	ASTM D695-15
Compressive Modulus	3450MPa	ASTM D695-15
Shear Strength	59.7MPa	ASTM D732-17
Deflection Temperature under Load	100.2℃	ASTM D648-18 Method B
Modulus Elasticity	2810MPa	ASTM D695-15

Feature:

1.Warranty 20 years.
2.Outdoor use non-yellowing .
3.Lucite new material with 100% pureness.
4.100% Bonding No Bubble,the connector/gap non yellowing.

5.Maximum 300mm can be one time cast without laminated.
6.Heating again in Anneal Oven, Eliminate Environmental Stress.
7.numerical control center mold, more precise for bending size.
8.exist environment in -40℃ to 80℃.
